Basic function - Range
DCV: 200mV/2V/20V/200V/600V ±(0.5%+3)
ACV: 200mV/2V/20V/200V/600V ±(0.8%+5)
ACA: 2A/20A/200A/600A ±(2.0%+30)

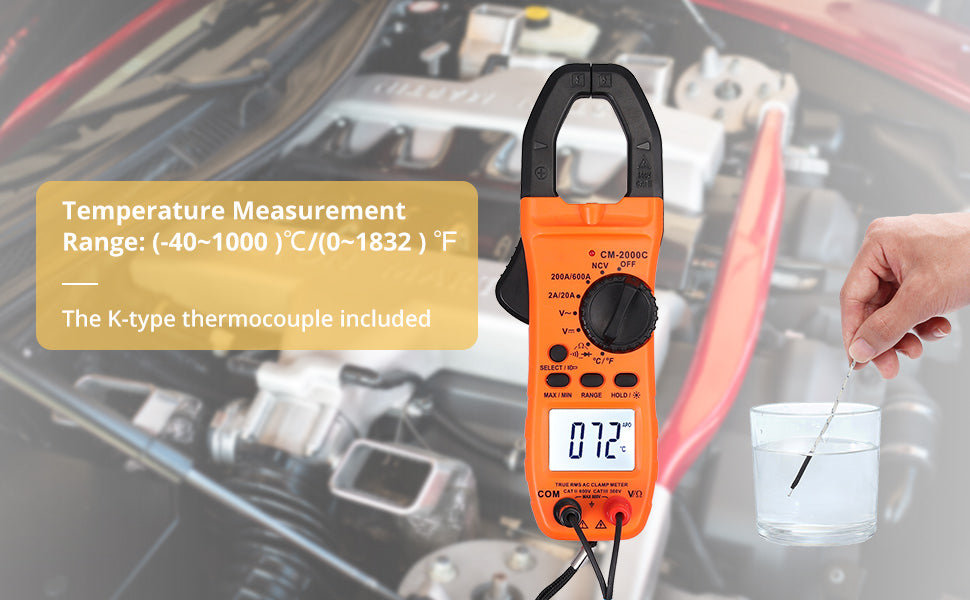

Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+3) Temperature: (-40~1000 )℃/(0~1832 ) ℉ ±(1.0%+5)
Special function:
Diode test:√
Continuity test: Less than 50Ω±10Ω
Low battery indicator: Approx. less than 2.6 V
Data hold:√
NCV:√
Auto power off: About 15 minutes
Function protection:√
Flashlight:√
Backlight display:√
Input impedance:10MΩ
Sampling rate:3 times/s
Operation method:Auto or manual range
Max display: 2000
Clamp opens:28mm
Battery: 3V (2*AAA battery)
General Characteristic:
Meter color:Orange and Black
Meter weight:About 200g (including battery)
Meter size:210×110×45mm
Standard accessory:Test leads, battery, manual, temperature probe,alligator clip
Package Content:
1 x Clamp Meter
1 x K-Type Thermocouple
1 x Test Leads (Pair)
1 x Alligator Clip(1 pair)
2 x 1.5V AAA Batteries(Inside the Clamp meter)
1 x User Manual 1 x Cloth Pouch
Notes: All clamp meters can measure current through a single wire, if you put two wires into the clamp jaw, the reading will be zero, only from one wire, you will get exact digits.
